BJTF Model — System Identification Walkthrough

This notebook demonstrates the four-step system identification process for a two-variable, input-output system using the Box-Jenkins Transfer Function (BJTF) model class.

Step	Task	Tool
1	Choose a model class	Identify input-output structure; zero-mean both signals
2	Select model order	uniAnal on u → ARMA model for u; multiAnal → impulse response, G/H GPAC
3	Estimate parameters	estimate, pmoddisp, pmodpzplot
4	Validate the model	multiChi — whiteness test (Q) and cross-correlation test (S)

Dataset: Box-Jenkins Series J — Gas Furnace (296 observations) Input u: gas flow rate (ft³/min, zero-meaned); Output y: percent CO₂ in exit gas (zero-meaned)

BJTF Model Structure

The BJTF model separates the input-output dynamics (G) from the noise dynamics (H):

\[y(t) = G(q^{-1})\,u(t-k) + H(q^{-1})\,e(t)\]

where

\[G(q^{-1}) = \frac{B(q^{-1})}{F(q^{-1})} = \frac{b_0 + b_1 q^{-1} + \cdots + b_{n_b} q^{-n_b}}{1 + f_1 q^{-1} + \cdots + f_{n_f} q^{-n_f}}\]

\[H(q^{-1}) = \frac{C(q^{-1})}{D(q^{-1})} = \frac{1 + c_1 q^{-1} + \cdots + c_{n_c} q^{-n_c}}{1 + d_1 q^{-1} + \cdots + d_{n_d} q^{-n_d}}\]

\(k\) is a pure time delay and \(e(t)\) is white noise with variance \(\sigma^2\).

BJTF is an output-error model: G and H are estimated independently, giving the most flexible representation when the disturbance model differs from the input dynamics. Compare to ARMAX (equation-error), where G and H share the same denominator polynomial A.

In PredictMod notation:

pmodel('bjtf', nb=[nb], nf=[nf], nc=[nc], nd=[nd], delay=[k], diff=[0], per=[])

import numpy as np
import matplotlib.pyplot as plt
import sys, os
import pandas as pd

current_dir = os.getcwd()
timeseries_root = os.path.abspath(os.path.join(current_dir, '..', '..', '..'))
if timeseries_root not in sys.path:
    sys.path.insert(0, timeseries_root)

from TimeSeriesSRC.Model.model import pmodel
from TimeSeriesSRC.Model.estimate import estimate
from TimeSeriesSRC.Model.selpmod import func_selpmod as selpmod
from TimeSeriesSRC.Model.pmodaic import func_pmodaic as pmodaic
from TimeSeriesSRC.Model.pmodbic import func_pmodbic as pmodbic
from TimeSeriesSRC.basefunctions.uniAnal import func_uniAnal as uniAnal
from TimeSeriesSRC.basefunctions.multiAnal import func_multiAnal as multiAnal
from TimeSeriesSRC.basefunctions.uniChi import func_uniChi as uniChi
from TimeSeriesSRC.basefunctions.multiChi import func_multiChi as multiChi
from TimeSeriesSRC.basefunctions.partoacf import func_partoacf_pmod as partoacf_pmod
from TimeSeriesSRC.Model.pmodmse import func_pmodmse as pmodmse
from TimeSeriesSRC.Model.pmoddisp import func_pmoddisp as pmoddisp
from TimeSeriesSRC.Model.pmoddisp import func_pmodpzplot as pmodpzplot

np.random.seed(42)
print('Setup complete.')

Setup complete.

data_path = os.path.join(timeseries_root, 'TimeSeriesSRC', 'TestData',
                         'Series_J_Gas_Furnace.csv')
df    = pd.read_csv(data_path)
u_raw = np.array(df['InputGasRate'], dtype=float)
y_raw = np.array(df['CO2'],          dtype=float)

u = u_raw - u_raw.mean()
y = y_raw - y_raw.mean()
N = y.size

print(f'Loaded gas furnace data: N={N} samples')
print(f'u: mean={u.mean():.2e}, std={u.std():.3f}')
print(f'y: mean={y.mean():.2e}, std={y.std():.3f}')

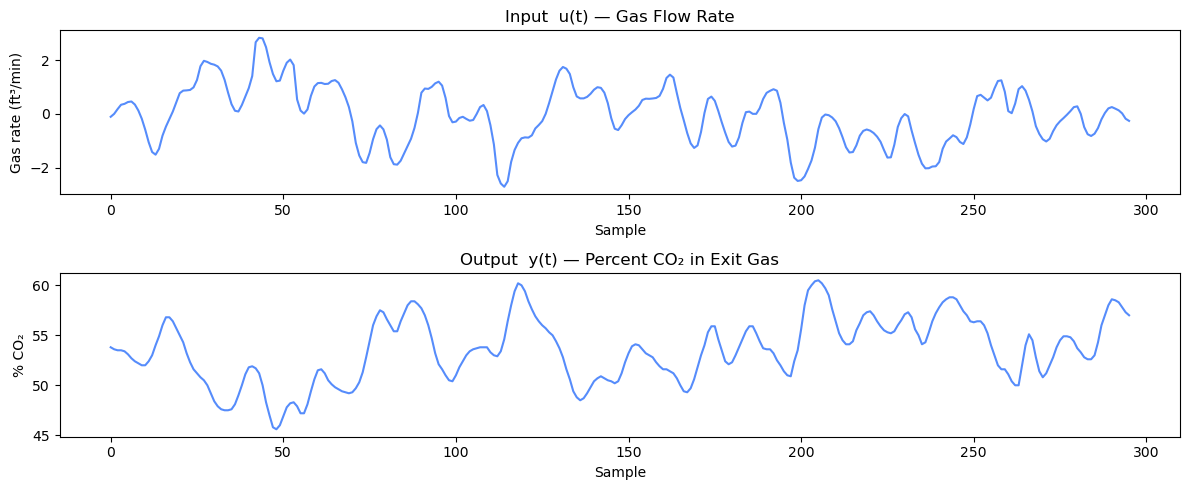

fig, axes = plt.subplots(2, 1, figsize=(12, 5))
axes[0].plot(u_raw)
axes[0].set_title('Input  u(t) — Gas Flow Rate')
axes[0].set_xlabel('Sample')
axes[0].set_ylabel('Gas rate (ft³/min)')
axes[1].plot(y_raw)
axes[1].set_title('Output  y(t) — Percent CO₂ in Exit Gas')
axes[1].set_xlabel('Sample')
axes[1].set_ylabel('% CO₂')
plt.tight_layout()
plt.show()

Loaded gas furnace data: N=296 samples
u: mean=4.80e-17, std=1.071
y: mean=4.51e-15, std=3.197

Step 1 — Choose a Model Class

The gas furnace experiment measures a cause-and-effect relationship: the gas flow rate u(t) is manipulated and the CO₂ concentration y(t) responds after a delay. This input-output structure points to a model with both a transfer function G from u to y and a separate noise model H for the unmeasured disturbance.

Three candidate model classes are compared in this notebook:

Model	Structure	Key property
BJTF	\(y = \frac{B}{F} u + \frac{C}{D} e\)	Output-error: G and H estimated independently — most flexible
ARMAX	\(A\,y = B\,u + C\,e\)	Equation-error: G and H share the same poles (A)
ARX	\(A\,y = B\,u + e\)	Simplest equation-error: H = 1/A, no MA term

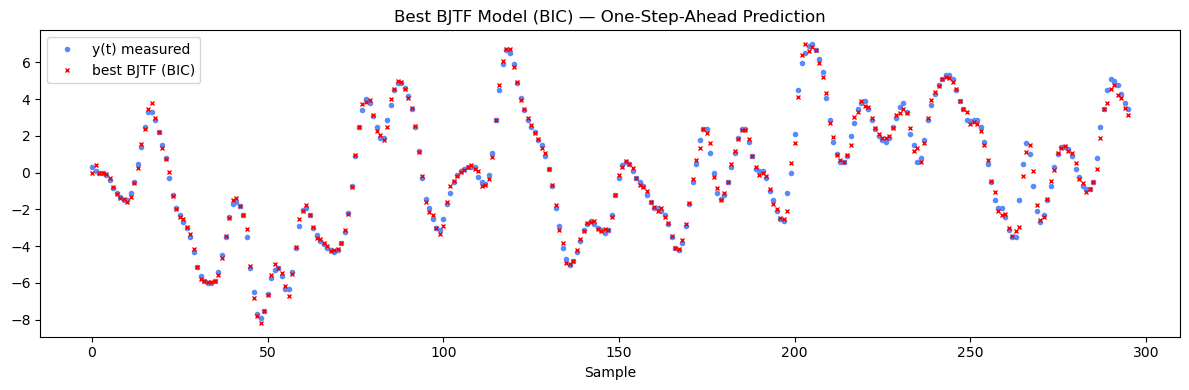

We work through the full four-step process for BJTF and use selpmod to compare ARMAX and ARX at the end.

Step 2 — Select Model Order

Step 2a — Univariate Analysis of the Input u

Before fitting the BJTF model, we model u(t) as an ARMA process. This serves two purposes:

1. Prewhitening — multiAnal uses the ARMA model to prewhiten u before computing the impulse response and G/H GPAC arrays. An accurate input model sharpens the cross-correlation estimates.

2. Preliminary structure check — the ACF, PACF, and GPAC of u reveal its autocorrelation structure independently of y.

We apply uniAnal to identify the ARMA order for u.

uacf, upacf, ugpac = uniAnal(u, 20, 10)
print('GPAC for u:')
print(np.round(ugpac, 3))

GPAC for u:
[[ 0.952 -0.788  0.339  0.121  0.059]
 [ 0.876 -0.633  0.588 -0.041  0.287]
 [ 0.817 -0.472  0.621  5.     0.335]
 [ 0.779 -0.199  0.391  0.367  0.671]
 [ 0.767  0.685  0.46  -0.299  0.224]]

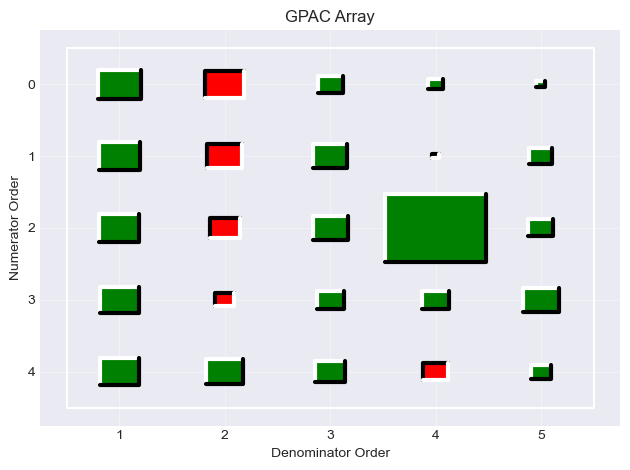

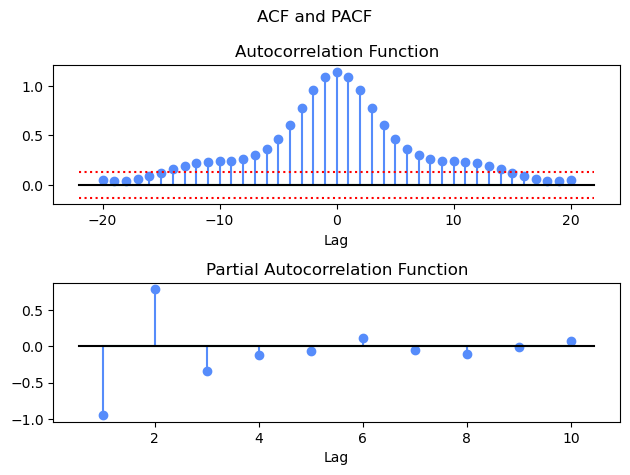

ACF/GPAC Interpretation for u

Key features in the correlation structure of u:

• The PACF cuts off sharply after lag 3, with negligible values beyond.

• The GPAC shows an approximately constant value in column 3 starting from row 1, with near-zero entries in columns 1 and 2.

This is the signature of a pure AR(3) process — an ARMA model with \(n_c = 0\) (no MA terms) and \(n_d = 3\) (three AR terms).

Step 2b — Fit and Validate the ARMA(0, 3) Model for u

We fit the AR(3) model and inspect parameter confidence intervals, the residual ACF, and the chi-square statistic.

pmod_u = pmodel('arma', nc=[0], nd=[3], diff=[0], per=[])
pmod_u, trec_u, stat_u = estimate(pmod_u, u)
pmoddisp(pmod_u, stat_u)

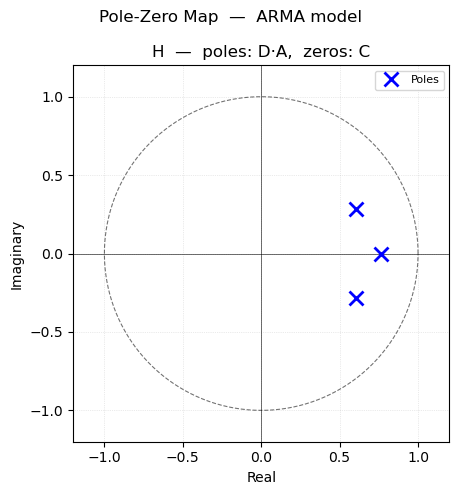

pmodpzplot(pmod_u)
plt.show()

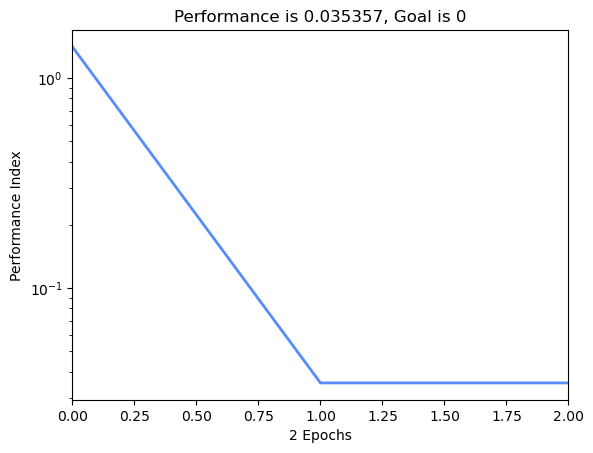

Epoch 0/100 Time 0.021348953247070312 PMODMSE 1.4073348483018802/0 Gradient 565.9039021710234/0.0001 mu 0.001/10000000000.0

8.995961100382583e-08 0.0001
Epoch 2/100 Time 0.30977296829223633 PMODMSE 0.035357034664973426/0 Gradient 8.995961100382583e-08/0.0001 mu 1e-05/10000000000.0

ESTIMLM, Minimum gradient reached, performance goal was not met.

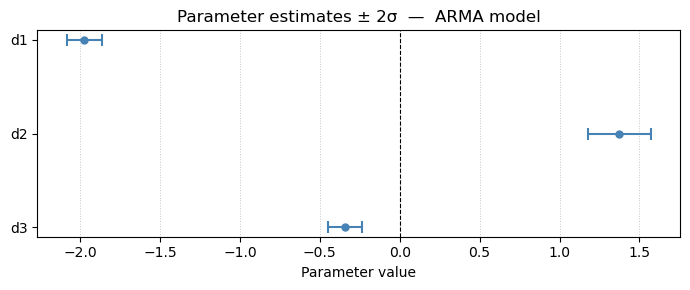

Parameter estimates — ARMA model
--------------------------------
  Param        Value          ±2σ   95% CI
  ----------------------------------------
  d1      -1.9749       0.1092   (   -2.0841,    -1.8656)
  d2       1.3732       0.1980   (    1.1752,     1.5712)
  d3      -0.3425       0.1093   (   -0.4518,    -0.2332)

  Residual std  σ = 0.188035
  Residual var  σ² = 0.035357

All three AR parameters should have narrow confidence intervals that exclude zero — no order reduction indicated. There are no zeros (\(n_c = 0\)), so the pole-zero plot shows only poles.

Validation checks:

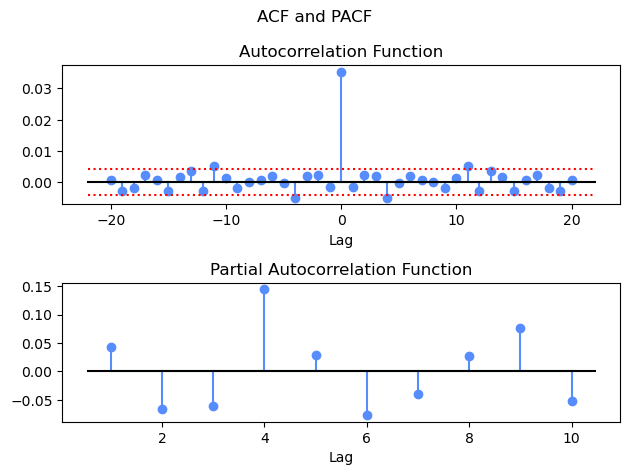

1. Residual ACF/PACF/GPAC — residuals should resemble white noise.

2. Portmanteau test — chi-square test on the residual ACF.

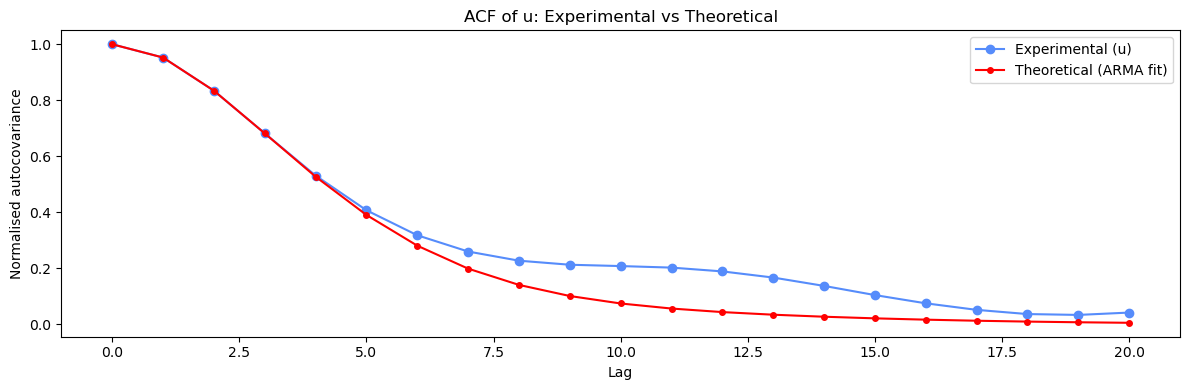

3. Theoretical vs experimental ACF — the fitted model should reproduce the autocorrelation structure of u.

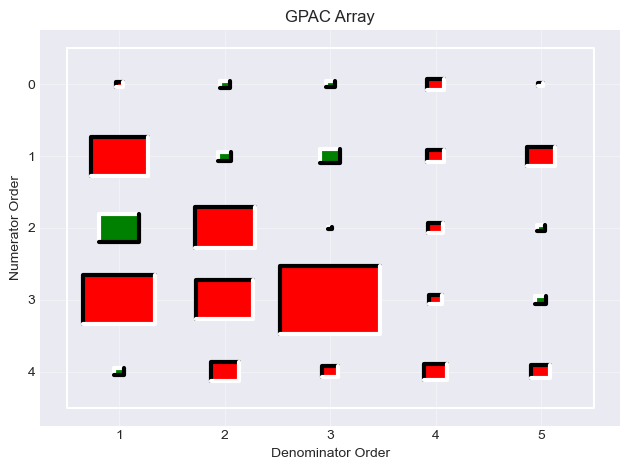

e_u = u - pmod_u.predict(u)
uracf, urpacf, urgpac = uniAnal(e_u, 20, 10)

passed_u, q_u, n_u, pval_u = uniChi(pmod_u, u)
print(f'Portmanteau test:  Q = {q_u:.2f},  df = {n_u},  p-value = {pval_u:.3f}')
print(f'Result: {"PASS" if passed_u else "FAIL"}')

var_e_u, _ = pmodmse(pmod_u, u)
lagmax = 21
acf_theory_u, _, _ = partoacf_pmod(pmod_u, var_e_u, lagmax)
uacf_s    = uacf.squeeze()
mid       = len(uacf_s) // 2
acf_exp_u = uacf_s[mid:mid + lagmax]

lags = np.arange(lagmax)
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(lags, acf_exp_u    / acf_exp_u[0],    'C0o-', label='Experimental (u)')
ax.plot(lags, acf_theory_u / acf_theory_u[0], 'r-o',  markersize=4, label='Theoretical (ARMA fit)')
ax.set_title('ACF of u: Experimental vs Theoretical')
ax.set_xlabel('Lag')
ax.set_ylabel('Normalised autocovariance')
ax.legend()
plt.tight_layout()
plt.show()

pval: 0.02130896745553046
alpha: 0.05
pr: 0.9786910325444695
q: 30.774215096981447
Portmanteau test:  Q = 30.77,  df = 17,  p-value = 0.021
Result: FAIL

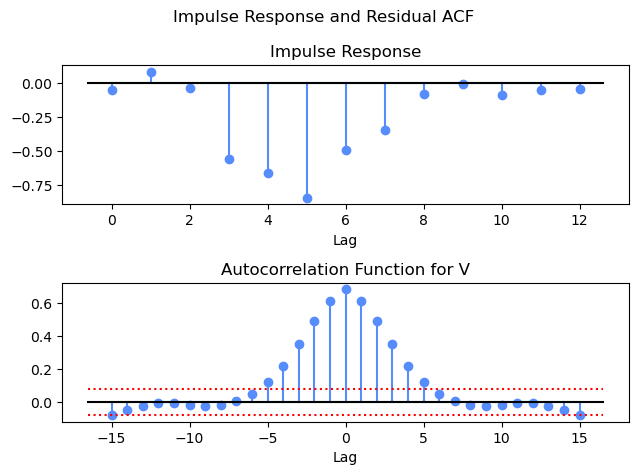

Step 2c — Multivariate Analysis (u → y)

multiAnal prewhitens u using the fitted ARMA model, then computes:

• The estimated impulse response \(\hat{g}(\tau)\) from u to y.

• The residual autocorrelation \(r_v(\tau)\) of the disturbance \(v = y - \hat{g} * u\).

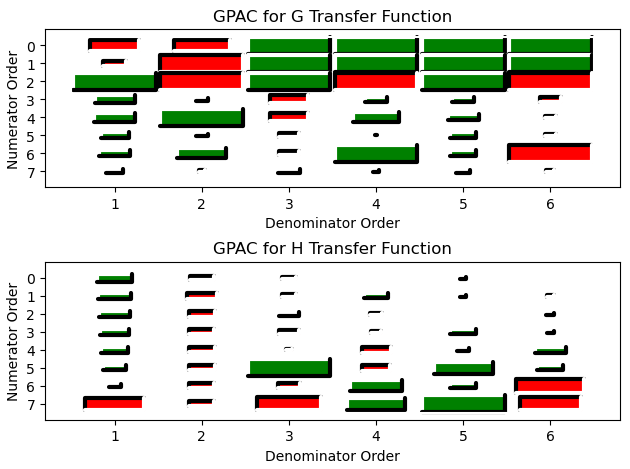

• The G GPAC — identifies orders \(n_b\) (B numerator) and \(n_f\) (F denominator) of G.

• The H GPAC — identifies orders \(n_c\) (C numerator) and \(n_d\) (D denominator) of H.

The lag at which \(\hat{g}(\tau)\) first becomes significantly non-zero gives the pure delay \(k\).

g_ir, rv, g_gpac, h_gpac = multiAnal(u, y, 8, 6, 8, 6)
print('Impulse response (first 10 lags):')
print(np.round(g_ir[:10], 4))
print('\nG GPAC:')
print(np.round(g_gpac, 3))
print('\nH GPAC:')
print(np.round(h_gpac, 3))

Prewhitening input for impulse response estimation, please wait...
Selecting the best ARMA prediction model
arma: Combination 1 out of 12 total  [nc=0, nd=1].  aic = -2.2348, bic = -2.2223
arma: Combination 2 out of 12 total  [nc=0, nd=2].  aic = -3.2042, bic = -3.1793
arma: Combination 3 out of 12 total  [nc=0, nd=3].  aic = -3.3220, bic = -3.2846
arma: Combination 4 out of 12 total  [nc=1, nd=1].  aic = -2.9441, bic = -2.9191
arma: Combination 5 out of 12 total  [nc=1, nd=2].  aic = -3.2891, bic = -3.2517
arma: Combination 6 out of 12 total  [nc=1, nd=3].  aic = -3.3308, bic = -3.2810
arma: Combination 7 out of 12 total  [nc=2, nd=1].  aic = -3.1488, bic = -3.1114
arma: Combination 8 out of 12 total  [nc=2, nd=2].  aic = -3.2995, bic = -3.2496
arma: Combination 9 out of 12 total  [nc=2, nd=3].  aic = -3.2891, bic = -3.2268
arma: Combination 10 out of 12 total  [nc=3, nd=1].  aic = -3.2934, bic = -3.2435
arma: Combination 11 out of 12 total  [nc=3, nd=2].  aic = -3.3483, bic = -3.2860
arma: Combination 12 out of 12 total  [nc=3, nd=3].  aic = -3.3504, bic = -3.2756

Impulse response (first 10 lags):
[-0.048   0.0834 -0.0345 -0.5582 -0.6574 -0.8422 -0.4945 -0.3426 -0.079
 -0.0064]

G GPAC:
[[-1.739 -2.304  5.     5.     5.     5.   ]
 [-0.414 -5.     5.     5.     5.     5.   ]
 [ 5.    -5.     5.    -5.     5.    -5.   ]
 [ 1.178  0.131 -1.091  0.367  0.392 -0.349]
 [ 1.281  5.    -1.04   1.561  0.712 -0.097]
 [ 0.587  0.115 -0.328  0.02   0.537 -0.118]
 [ 0.693  1.778 -0.324  5.     0.539 -5.   ]
 [ 0.231 -0.052  0.374  0.039  0.162 -0.063]]

H GPAC:
[[ 0.895 -0.424 -0.141  0.015  0.044 -0.008]
 [ 0.801 -0.668 -0.184  0.432  0.046 -0.056]
 [ 0.714 -0.54   0.299 -0.129  0.013  0.068]
 [ 0.631 -0.465 -0.312 -0.089  0.486  0.055]
 [ 0.546 -0.524 -0.041 -0.619  0.131  0.708]
 [ 0.417 -0.519  5.    -0.567  2.565  0.505]
 [ 0.122 -0.462 -0.385  2.027  0.499 -3.411]
 [-2.55  -0.473 -2.953  2.46   5.    -2.668]]

Interpretation and Model Order Selection

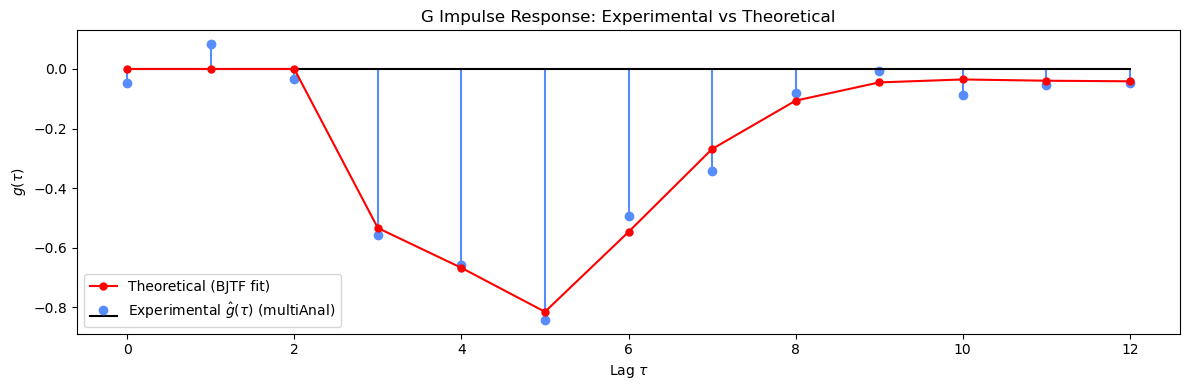

Impulse response \(\hat{g}(\tau)\):

• Near zero at \(\tau = 0, 1, 2\); becomes non-zero at \(\tau = 3\) → delay :math:`k = 3`.

G GPAC (transfer function from u to y):

• Large values in the first three rows reflect the pure delay.

• After accounting for the delay, an approximately constant value appears in column 2 of the effective GPAC — indicating \(n_b = 2\) zeros and \(n_f = 2\) poles in G.

H GPAC (noise transfer function):

• An approximately constant value in column 2 starting from row 1 → \(n_c = 0\), \(n_d = 2\).

Selected model: pmodel('bjtf', nb=[2], nf=[2], nc=[0], nd=[2], delay=[3])

Step 3 — Estimate Parameters

We estimate the BJTF model using the Levenberg-Marquardt algorithm. The output y must be the first argument to estimate and the input u the second.

The selected model has \(n_b + n_f + n_c + n_d = 2 + 2 + 0 + 2 = 6\) free parameters.

pmod_bjtf = pmodel('bjtf', nb=[2], nf=[2], nc=[0], nd=[2], delay=[3], diff=[0], per=[])
pmod_bjtf.estimParams.epochs = 50
pmod_bjtf.estimParams.goal   = 0.01
pmod_bjtf, trec_bjtf, stat_bjtf = estimate(pmod_bjtf, y, u)

Input may not be zero mean sequences.

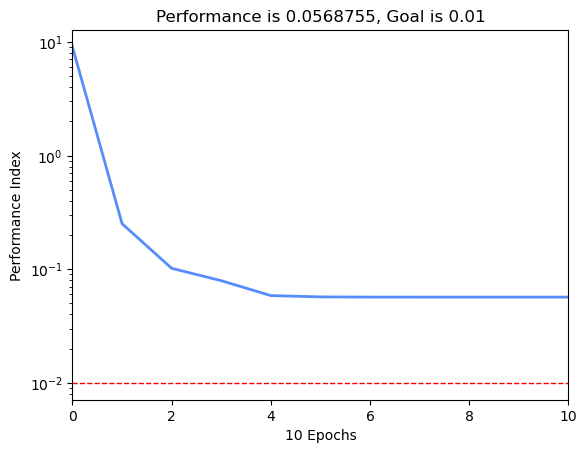

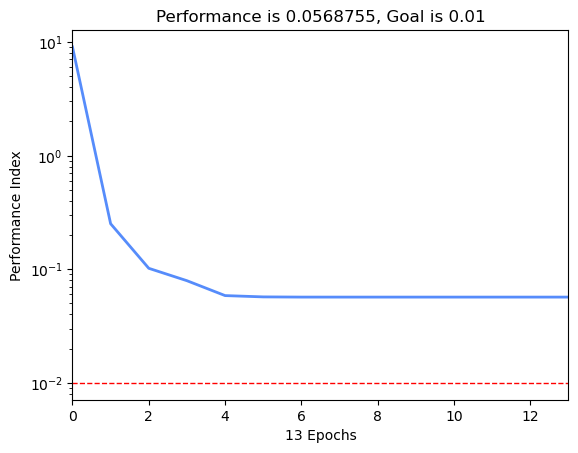

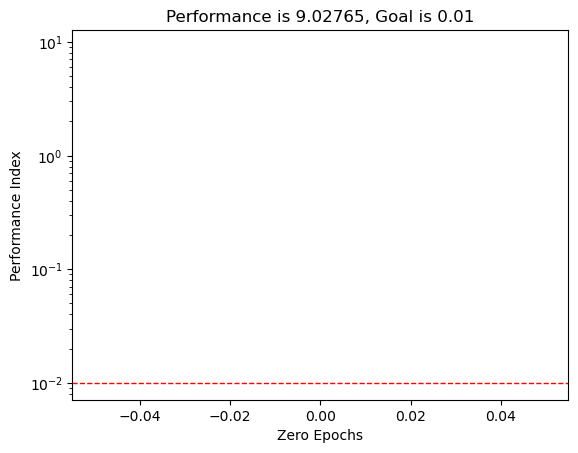

Epoch 0/50 Time 0.028278112411499023 PMODMSE 9.027646930088096/0.01 Gradient 3891.372092910378/0.0001 mu 0.001/10000000000.0

Epoch 10/50 Time 0.30186915397644043 PMODMSE 0.05687550163034918/0.01 Gradient 0.0021080390927325212/0.0001 mu 1.0000000000000005e-08/10000000000.0

2.906702857883076e-05 0.0001
Epoch 13/50 Time 0.4688451290130615 PMODMSE 0.056875501536003514/0.01 Gradient 2.906702857883076e-05/0.0001 mu 1.0000000000000006e-11/10000000000.0

ESTIMLM, Minimum gradient reached, performance goal was not met.

pmoddisp(pmod_bjtf, stat_bjtf)
pmodpzplot(pmod_bjtf)
plt.show()

Parameter estimates — BJTF model
--------------------------------
  Param        Value          ±2σ   95% CI
  ----------------------------------------
  b0      -0.5323       0.1483   (   -0.6805,    -0.3840)
  b1      -0.3706       0.2935   (   -0.6641,    -0.0771)
  b2      -0.5084       0.3111   (   -0.8195,    -0.1973)
  d1      -1.5287       0.0932   (   -1.6219,    -1.4355)
  d2       0.6295       0.0981   (    0.5314,     0.7276)
  f1      -0.5666       0.4134   (   -0.9799,    -0.1532)
  f2       0.0125       0.2857   (   -0.2732,     0.2983)

  Residual std  σ = 0.238486
  Residual var  σ² = 0.056876

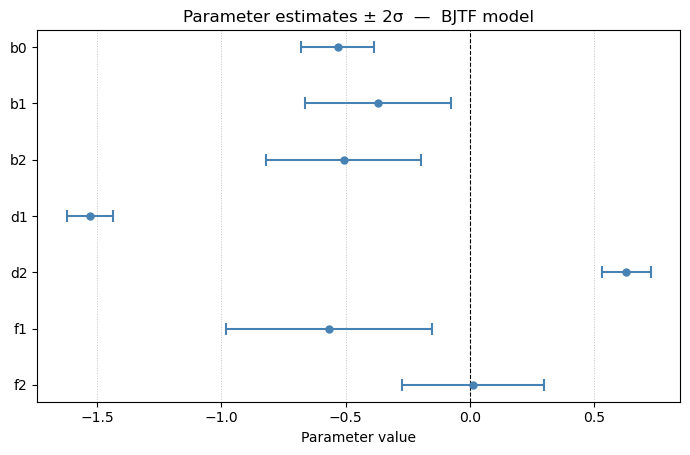

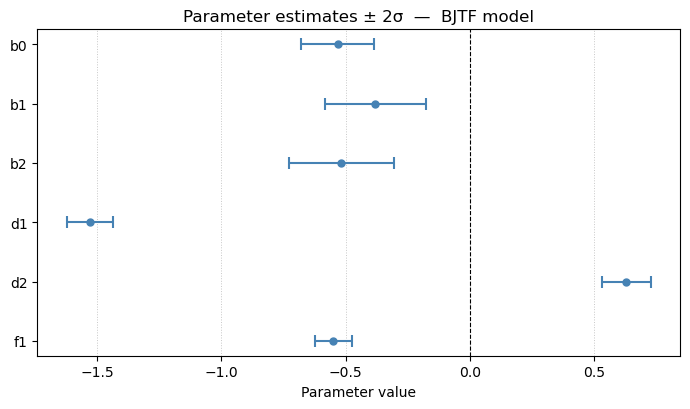

The parameter table shows all estimates with 95% confidence intervals. Note that f₂ may have a wide interval that includes zero — suggesting \(n_f\) could be reduced from 2 to 1. The selpmod search in Step 5 will check this.

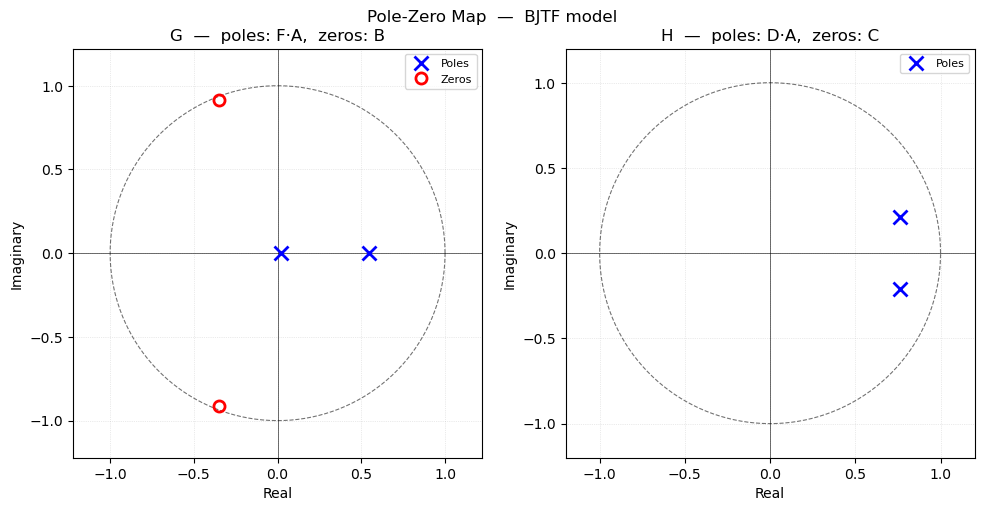

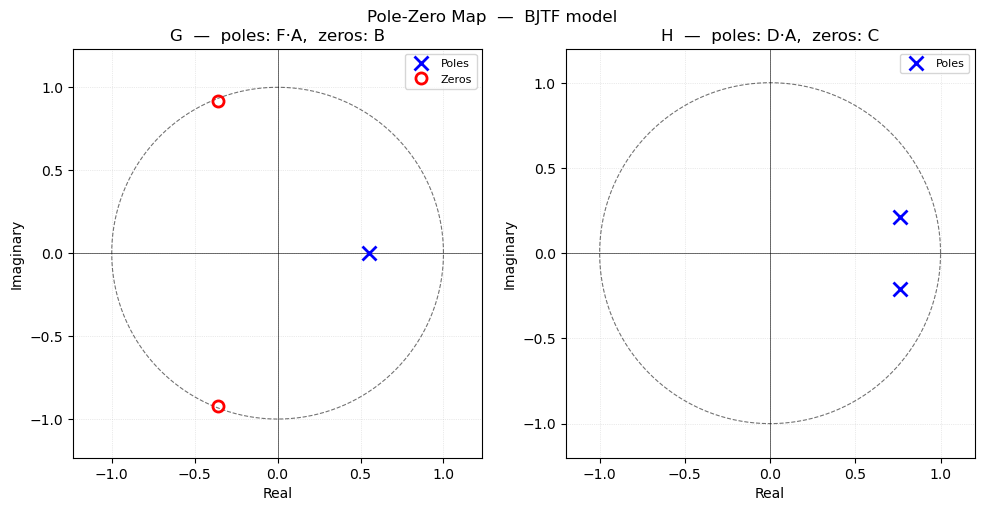

The pole-zero map shows G (B zeros, F poles) and H (C zeros, D poles) separately. No pole-zero cancellations are visible — no further order reduction is indicated from this plot alone.

Step 4 — Validate the Model

For BJTF models we apply three complementary checks:

1. Whiteness and cross-correlation tests — multiChi applies two chi-square tests on the one-step prediction errors \(e(t) = y(t) - \hat{y}(t|t-1)\):

   • Q statistic: residuals are white noise (ACF test). Pass: \(p_Q > 0.05\).

   • S statistic: residuals are uncorrelated with the prewhitened input. Pass: \(p_S > 0.05\).

2. Theoretical vs experimental impulse response — partoacf_pmod computes the theoretical impulse response of \(G(q^{-1}) = B(q^{-1})/F(q^{-1})\,q^{-k}\), which should match the experimental impulse response \(\hat{g}(\tau)\) from multiAnal in Step 2.

3. Theoretical vs experimental H autocorrelation — partoacf_pmod also computes the theoretical ACF of \(v(t) = H(q^{-1})e(t)\), which should match the residual autocorrelation \(r_v(\tau)\) from multiAnal.

pass_arr, q_val, pvalq, s_val, pvals, nq, ns = multiChi(pmod_bjtf, y, u)
print(f'Q: Q = {q_val:.2f},  df = {nq},  p-value = {pvalq:.3f},  pass = {bool(pass_arr[0])}')
print(f'S: S = {s_val:.2f},  df = {ns},  p-value = {pvals:.3f},  pass = {bool(pass_arr[1])}')

y_pred_bjtf = pmod_bjtf.predict(y, u)
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(y,           'C0o', ms=3, label='y(t) measured')
ax.plot(y_pred_bjtf, 'rx',  ms=3, label='ŷ(t|t−1) predicted')

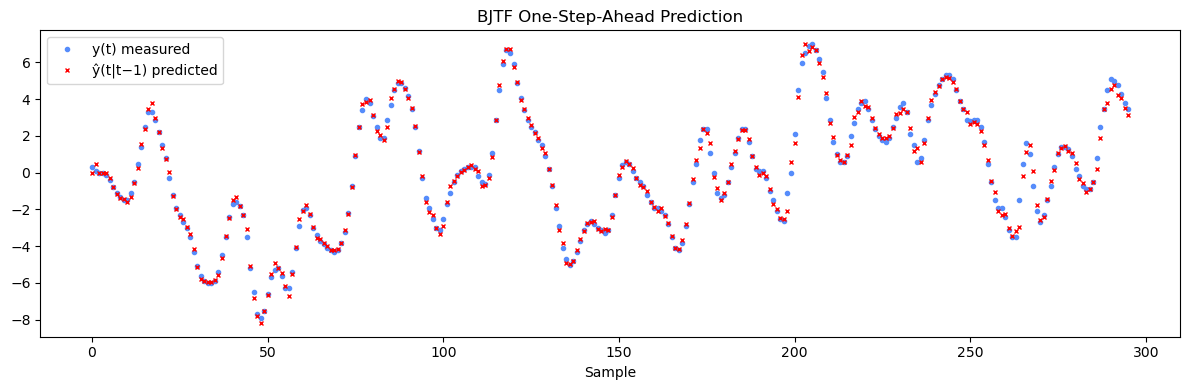

ax.set_title('BJTF One-Step-Ahead Prediction')
ax.set_xlabel('Sample')
ax.legend()
plt.tight_layout()
plt.show()

Prewhitening input, please wait...
Selecting the best ARMA prediction model
arma: Combination 1 out of 12 total  [nc=0, nd=1].  aic = -2.2348, bic = -2.2223
arma: Combination 2 out of 12 total  [nc=0, nd=2].  aic = -3.2042, bic = -3.1793
arma: Combination 3 out of 12 total  [nc=0, nd=3].  aic = -3.3220, bic = -3.2846
arma: Combination 4 out of 12 total  [nc=1, nd=1].  aic = -2.9441, bic = -2.9191
arma: Combination 5 out of 12 total  [nc=1, nd=2].  aic = -3.2891, bic = -3.2517
arma: Combination 6 out of 12 total  [nc=1, nd=3].  aic = -3.3308, bic = -3.2810
arma: Combination 7 out of 12 total  [nc=2, nd=1].  aic = -3.1488, bic = -3.1114
arma: Combination 8 out of 12 total  [nc=2, nd=2].  aic = -3.2995, bic = -3.2496
arma: Combination 9 out of 12 total  [nc=2, nd=3].  aic = -3.3260, bic = -3.2637
arma: Combination 10 out of 12 total  [nc=3, nd=1].  aic = -3.2934, bic = -3.2435
arma: Combination 11 out of 12 total  [nc=3, nd=2].  aic = -3.3483, bic = -3.2860
arma: Combination 12 out of 12 total  [nc=3, nd=3].  aic = -3.3504, bic = -3.2756
Q: Q = 26.03,  df = 18,  p-value = 0.099,  pass = True
S: S = 15.03,  df = 16,  p-value = 0.522,  pass = True

Both tests should pass (p-values \(> 0.05\)): residuals consistent with white noise and uncorrelated with the prewhitened input. The prediction plot shows the model tracking the measured output closely.

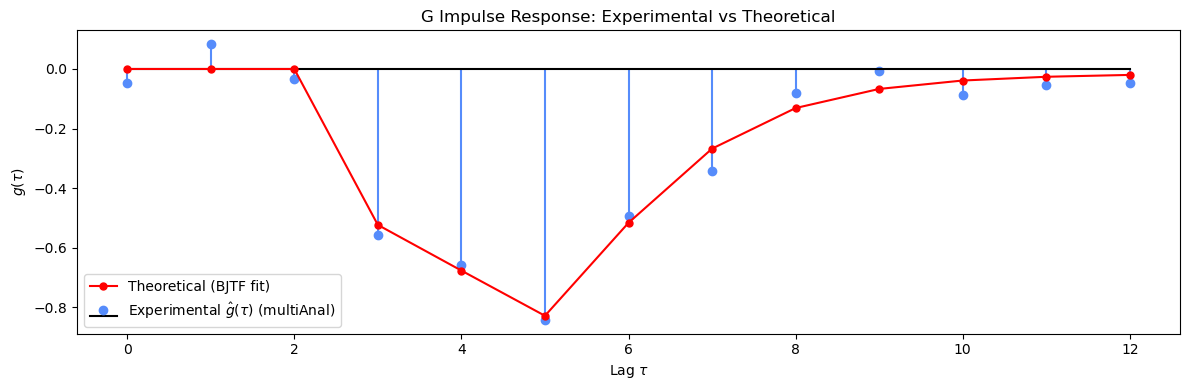

Check 2 — Theoretical vs Experimental Impulse Response

The theoretical impulse response of \(G(q^{-1}) = B(q^{-1})/F(q^{-1})\,q^{-k}\) is computed from the estimated coefficients using partoacf_pmod and compared with the experimental impulse response \(\hat{g}(\tau)\) returned by multiAnal in Step 2. The pure delay \(k = 3\) should appear as three leading zeros in both.

# Noise variance from one-step prediction errors
e_bjtf = y - pmod_bjtf.predict(y, u)
var_e_bjtf = np.var(e_bjtf)
print(f'Noise variance estimate: {var_e_bjtf:.6f}')

# Theoretical impulse response (G) and H ACF from the fitted model.
# lagmax covers both the impulse response length and rv positive-lag range.
lagmax_g = len(g_ir)                        # match experimental g_ir length
lagmax_h = rv.squeeze().shape[0] // 2 + 1  # positive lags of rv
lagmax_c = max(lagmax_g, lagmax_h)
acf_theory_H, _, g_ir_theory = partoacf_pmod(pmod_bjtf, var_e_bjtf, lagmax_c)

# ── Plot 1: G impulse response ──────────────────────────────────────────────
lags_g = np.arange(lagmax_g)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_g, g_ir, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $\hat{g}(\tau)$ (multiAnal)')
ax.plot(lags_g, g_ir_theory[:lagmax_g], 'r-o', markersize=5, linewidth=1.5,
        label='Theoretical (BJTF fit)')

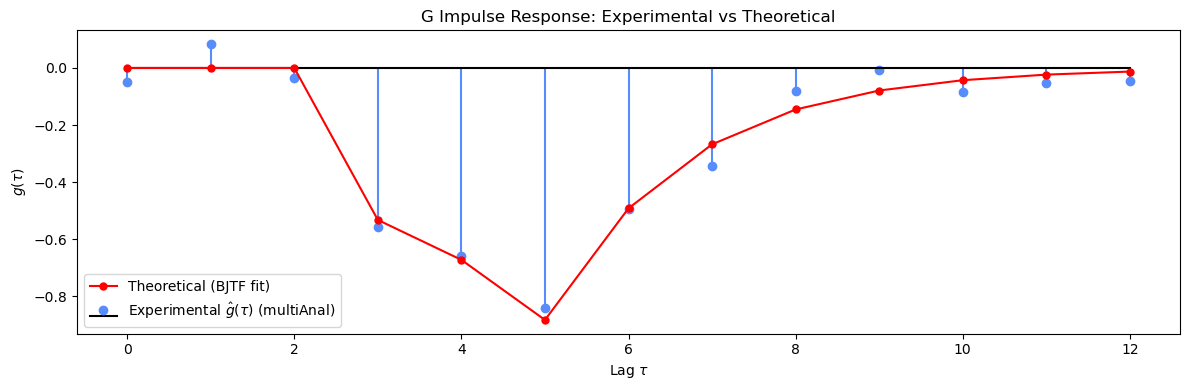

ax.set_title('G Impulse Response: Experimental vs Theoretical')
ax.set_xlabel(r'Lag $\tau$')
ax.set_ylabel(r'$g(\tau)$')
ax.legend()
plt.tight_layout()
plt.show()

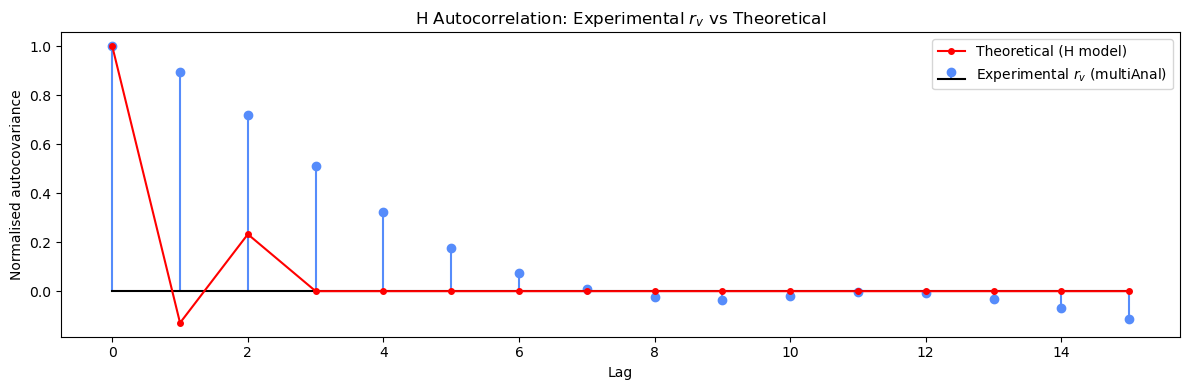

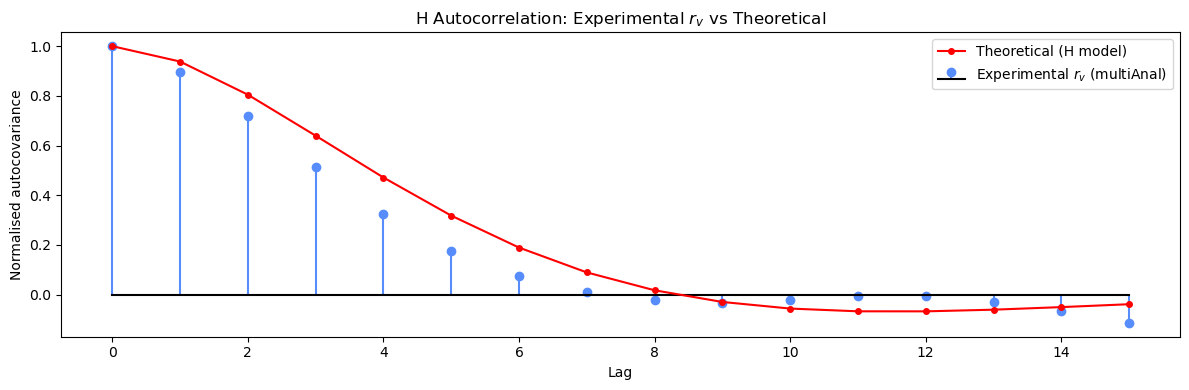

# ── Plot 2: H autocorrelation — rv vs theoretical ───────────────────────────
rv_s   = rv.squeeze()
mid_rv = len(rv_s) // 2
rv_pos = rv_s[mid_rv:mid_rv + lagmax_h]

acf_H_norm = acf_theory_H[:lagmax_h] / acf_theory_H[0]
rv_norm    = rv_pos / rv_pos[0]

lags_h = np.arange(lagmax_h)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_h, rv_norm, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $r_v$ (multiAnal)')
ax.plot(lags_h, acf_H_norm, 'r-o', markersize=4, linewidth=1.5,
        label='Theoretical (H model)')

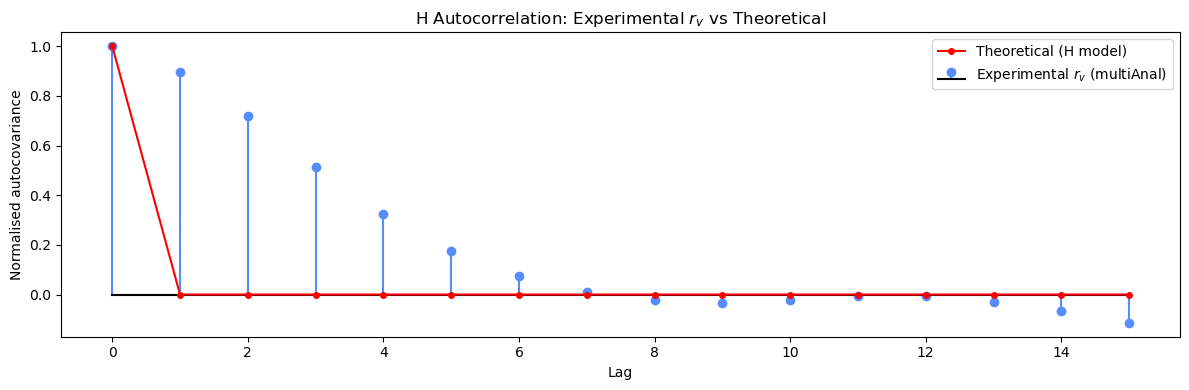

ax.set_title(r'H Autocorrelation: Experimental $r_v$ vs Theoretical')
ax.set_xlabel('Lag')
ax.set_ylabel('Normalised autocovariance')
ax.legend()
plt.tight_layout()
plt.show()

Noise variance estimate: 0.056865

Step 5 — Automated Model Selection with selpmod

selpmod searches a grid of BJTF structures and selects the best by AIC and BIC.

Parameter	Values
\(n_b\) (B numerator)	1, 2
\(n_c\) (C numerator)	0, 1, 2
\(n_d\) (D denominator)	0, 1, 2
\(n_f\) (F denominator)	0, 1, 2
Delay \(k\)	3 (fixed)

\(2 \times 3^3 = 54\) total combinations. The BIC-optimal model is expected to reduce \(n_f\) from 2 to 1, removing the marginally significant \(f_2\).

bjtf_spec = {
    'models': [{
        'type':  'bjtf',
        'nb':    [1, 2],
        'nc':    [0, 1, 2],
        'nd':    [0, 1, 2],
        'nf':    [0, 1, 2],
        'delay': [3],
        'diff':  [0]
    }]
}
result_bjtf = selpmod(bjtf_spec, y, u)
print('\nModel selection complete.')

Input may not be zero mean sequences.
Selecting the best BJTF prediction model
bjtf: Combination 1 out of 54 total  [nb=1, nc=0, nd=0, nf=0, delay=3].  aic = 0.2919, bic = 0.3168
Input may not be zero mean sequences.
bjtf: Combination 2 out of 54 total  [nb=1, nc=0, nd=0, nf=1, delay=3].  aic = -0.3650, bic = -0.3276
Input may not be zero mean sequences.
bjtf: Combination 3 out of 54 total  [nb=1, nc=0, nd=0, nf=2, delay=3].  aic = -0.3591, bic = -0.3092
Input may not be zero mean sequences.
bjtf: Combination 4 out of 54 total  [nb=1, nc=0, nd=1, nf=0, delay=3].  aic = -1.5643, bic = -1.5269
Input may not be zero mean sequences.
bjtf: Combination 5 out of 54 total  [nb=1, nc=0, nd=1, nf=1, delay=3].  aic = -2.3537, bic = -2.3038
Input may not be zero mean sequences.
bjtf: Combination 6 out of 54 total  [nb=1, nc=0, nd=1, nf=2, delay=3].  aic = -2.3875, bic = -2.3252
Input may not be zero mean sequences.
bjtf: Combination 7 out of 54 total  [nb=1, nc=0, nd=2, nf=0, delay=3].  aic = -2.1598, bic = -2.1099
Input may not be zero mean sequences.
bjtf: Combination 8 out of 54 total  [nb=1, nc=0, nd=2, nf=1, delay=3].  aic = -2.7629, bic = -2.7005
Input may not be zero mean sequences.
bjtf: Combination 9 out of 54 total  [nb=1, nc=0, nd=2, nf=2, delay=3].  aic = -2.7998, bic = -2.7250
Input may not be zero mean sequences.
bjtf: Combination 10 out of 54 total  [nb=1, nc=1, nd=0, nf=0, delay=3].  aic = -0.5925, bic = -0.5551
Input may not be zero mean sequences.
bjtf: Combination 11 out of 54 total  [nb=1, nc=1, nd=0, nf=1, delay=3].  aic = -1.3945, bic = -1.3446
Input may not be zero mean sequences.
bjtf: Combination 12 out of 54 total  [nb=1, nc=1, nd=0, nf=2, delay=3].  aic = -1.3926, bic = -1.3302
Input may not be zero mean sequences.
bjtf: Combination 13 out of 54 total  [nb=1, nc=1, nd=1, nf=0, delay=3].  aic = -1.8995, bic = -1.8497
Input may not be zero mean sequences.
bjtf: Combination 14 out of 54 total  [nb=1, nc=1, nd=1, nf=1, delay=3].  aic = -2.6376, bic = -2.5753
Input may not be zero mean sequences.
bjtf: Combination 15 out of 54 total  [nb=1, nc=1, nd=1, nf=2, delay=3].  aic = -2.6802, bic = -2.6054
Input may not be zero mean sequences.
bjtf: Combination 16 out of 54 total  [nb=1, nc=1, nd=2, nf=0, delay=3].  aic = -2.1951, bic = -2.1327
Input may not be zero mean sequences.
bjtf: Combination 17 out of 54 total  [nb=1, nc=1, nd=2, nf=1, delay=3].  aic = -2.7568, bic = -2.6820
Input may not be zero mean sequences.
bjtf: Combination 18 out of 54 total  [nb=1, nc=1, nd=2, nf=2, delay=3].  aic = -2.7939, bic = -2.7066
Input may not be zero mean sequences.
bjtf: Combination 19 out of 54 total  [nb=1, nc=2, nd=0, nf=0, delay=3].  aic = -1.2472, bic = -1.1974
Input may not be zero mean sequences.
bjtf: Combination 20 out of 54 total  [nb=1, nc=2, nd=0, nf=1, delay=3].  aic = -2.0714, bic = -2.0091
Input may not be zero mean sequences.
bjtf: Combination 21 out of 54 total  [nb=1, nc=2, nd=0, nf=2, delay=3].  aic = -2.0785, bic = -2.0037
Input may not be zero mean sequences.
bjtf: Combination 22 out of 54 total  [nb=1, nc=2, nd=1, nf=0, delay=3].  aic = -2.1024, bic = -2.0401
Input may not be zero mean sequences.
bjtf: Combination 23 out of 54 total  [nb=1, nc=2, nd=1, nf=1, delay=3].  aic = -2.7329, bic = -2.6581
Input may not be zero mean sequences.
bjtf: Combination 24 out of 54 total  [nb=1, nc=2, nd=1, nf=2, delay=3].  aic = -2.7768, bic = -2.6895
Input may not be zero mean sequences.
bjtf: Combination 25 out of 54 total  [nb=1, nc=2, nd=2, nf=0, delay=3].  aic = -2.2412, bic = -2.1664
Input may not be zero mean sequences.
bjtf: Combination 26 out of 54 total  [nb=1, nc=2, nd=2, nf=1, delay=3].  aic = -2.7629, bic = -2.6757
Input may not be zero mean sequences.
bjtf: Combination 27 out of 54 total  [nb=1, nc=2, nd=2, nf=2, delay=3].  aic = -2.8021, bic = -2.7024
Input may not be zero mean sequences.
bjtf: Combination 28 out of 54 total  [nb=2, nc=0, nd=0, nf=0, delay=3].  aic = -0.1299, bic = -0.0925
Input may not be zero mean sequences.
bjtf: Combination 29 out of 54 total  [nb=2, nc=0, nd=0, nf=1, delay=3].  aic = -0.3602, bic = -0.3103
Input may not be zero mean sequences.
bjtf: Combination 30 out of 54 total  [nb=2, nc=0, nd=0, nf=2, delay=3].  aic = -0.3546, bic = -0.2923
Input may not be zero mean sequences.
bjtf: Combination 31 out of 54 total  [nb=2, nc=0, nd=1, nf=0, delay=3].  aic = -2.1179, bic = -2.0680
Input may not be zero mean sequences.
bjtf: Combination 32 out of 54 total  [nb=2, nc=0, nd=1, nf=1, delay=3].  aic = -2.3990, bic = -2.3367
Input may not be zero mean sequences.
bjtf: Combination 33 out of 54 total  [nb=2, nc=0, nd=1, nf=2, delay=3].  aic = -2.3926, bic = -2.3178
Input may not be zero mean sequences.
bjtf: Combination 34 out of 54 total  [nb=2, nc=0, nd=2, nf=0, delay=3].  aic = -2.5640, bic = -2.5016
Input may not be zero mean sequences.
bjtf: Combination 35 out of 54 total  [nb=2, nc=0, nd=2, nf=1, delay=3].  aic = -2.8263, bic = -2.7515
Input may not be zero mean sequences.
bjtf: Combination 36 out of 54 total  [nb=2, nc=0, nd=2, nf=2, delay=3].  aic = -2.8196, bic = -2.7323
Input may not be zero mean sequences.
bjtf: Combination 37 out of 54 total  [nb=2, nc=1, nd=0, nf=0, delay=3].  aic = -1.0808, bic = -1.0310
Input may not be zero mean sequences.
bjtf: Combination 38 out of 54 total  [nb=2, nc=1, nd=0, nf=1, delay=3].  aic = -1.3969, bic = -1.3346
Input may not be zero mean sequences.
bjtf: Combination 39 out of 54 total  [nb=2, nc=1, nd=0, nf=2, delay=3].  aic = -1.3915, bic = -1.3167
Input may not be zero mean sequences.
bjtf: Combination 40 out of 54 total  [nb=2, nc=1, nd=1, nf=0, delay=3].  aic = -2.4413, bic = -2.3790
Input may not be zero mean sequences.
bjtf: Combination 41 out of 54 total  [nb=2, nc=1, nd=1, nf=1, delay=3].  aic = -2.7008, bic = -2.6260
Input may not be zero mean sequences.
bjtf: Combination 42 out of 54 total  [nb=2, nc=1, nd=1, nf=2, delay=3].  aic = -2.6943, bic = -2.6070
Input may not be zero mean sequences.
bjtf: Combination 43 out of 54 total  [nb=2, nc=1, nd=2, nf=0, delay=3].  aic = -2.5671, bic = -2.4922
Input may not be zero mean sequences.
bjtf: Combination 44 out of 54 total  [nb=2, nc=1, nd=2, nf=1, delay=3].  aic = -2.8205, bic = -2.7332
Input may not be zero mean sequences.
bjtf: Combination 45 out of 54 total  [nb=2, nc=1, nd=2, nf=2, delay=3].  aic = -2.8137, bic = -2.7140
Input may not be zero mean sequences.
bjtf: Combination 46 out of 54 total  [nb=2, nc=2, nd=0, nf=0, delay=3].  aic = -1.7669, bic = -1.7045
Input may not be zero mean sequences.
bjtf: Combination 47 out of 54 total  [nb=2, nc=2, nd=0, nf=1, delay=3].  aic = -2.0914, bic = -2.0166
Input may not be zero mean sequences.
bjtf: Combination 48 out of 54 total  [nb=2, nc=2, nd=0, nf=2, delay=3].  aic = -2.0902, bic = -2.0029
Input may not be zero mean sequences.
bjtf: Combination 49 out of 54 total  [nb=2, nc=2, nd=1, nf=0, delay=3].  aic = -2.5413, bic = -2.4665
Input may not be zero mean sequences.
bjtf: Combination 50 out of 54 total  [nb=2, nc=2, nd=1, nf=1, delay=3].  aic = -2.8014, bic = -2.7141
Input may not be zero mean sequences.
bjtf: Combination 51 out of 54 total  [nb=2, nc=2, nd=1, nf=2, delay=3].  aic = -2.7949, bic = -2.6951
Input may not be zero mean sequences.
bjtf: Combination 52 out of 54 total  [nb=2, nc=2, nd=2, nf=0, delay=3].  aic = -2.5728, bic = -2.4856
Input may not be zero mean sequences.
bjtf: Combination 53 out of 54 total  [nb=2, nc=2, nd=2, nf=1, delay=3].  aic = -2.8274, bic = -2.7277
Input may not be zero mean sequences.
bjtf: Combination 54 out of 54 total  [nb=2, nc=2, nd=2, nf=2, delay=3].  aic = -2.8209, bic = -2.7087

Model selection complete.

pmod_bic = result_bjtf['bjtf']['bicmod']
stat_bic = result_bjtf['bjtf']['bicstat']

print('Best BJTF model by BIC:')
print(f'  b = {pmod_bic.b}')
print(f'  f = {pmod_bic.f}')
print(f'  c = {pmod_bic.c}')
print(f'  d = {pmod_bic.d}')
print(f'  delay = {pmod_bic.delay}')

pmoddisp(pmod_bic, stat_bic)
pmodpzplot(pmod_bic)
plt.show()

y_pred_bic = pmod_bic.predict(y, u)
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(y,          'C0o', ms=3, label='y(t) measured')
ax.plot(y_pred_bic, 'rx',  ms=3, label='best BJTF (BIC)')
ax.set_title('Best BJTF Model (BIC) — One-Step-Ahead Prediction')
ax.set_xlabel('Sample')
ax.legend()
plt.tight_layout()
plt.show()

pass2, q2, pvalq2, s2, pvals2, nq2, ns2 = multiChi(pmod_bic, y, u)
print(f'Q: Q={q2:.2f},  df={nq2},  p={pvalq2:.3f},  pass={bool(pass2[0])}')
print(f'S: S={s2:.2f},  df={ns2},  p={pvals2:.3f},  pass={bool(pass2[1])}')

aic_bjtf = pmodaic(pmod_bic, y, u)
bic_bjtf = pmodbic(pmod_bic, y, u)
print(f'\nBest BJTF (BIC)  —  AIC = {aic_bjtf:.4f},  BIC = {bic_bjtf:.4f}')

Best BJTF model by BIC:
  b = [[-0.5315175301678751, -0.3798226498270445, -0.517306053320867]]
  f = [array([-0.54919241])]
  c = [[]]
  d = [array([-1.52862716,  0.6295388 ])]
  delay = [3]
Parameter estimates — BJTF model
--------------------------------
  Param        Value          ±2σ   95% CI
  ----------------------------------------
  b0      -0.5315       0.1472   (   -0.6787,    -0.3844)
  b1      -0.3798       0.2026   (   -0.5824,    -0.1772)
  b2      -0.5173       0.2123   (   -0.7296,    -0.3050)
  d1      -1.5286       0.0932   (   -1.6218,    -1.4355)
  d2       0.6295       0.0981   (    0.5315,     0.7276)
  f1      -0.5492       0.0750   (   -0.6242,    -0.4742)

  Residual std  σ = 0.238489
  Residual var  σ² = 0.056877

Prewhitening input, please wait...
Selecting the best ARMA prediction model
arma: Combination 1 out of 12 total  [nc=0, nd=1].  aic = -2.2348, bic = -2.2223
arma: Combination 2 out of 12 total  [nc=0, nd=2].  aic = -3.2042, bic = -3.1793
arma: Combination 3 out of 12 total  [nc=0, nd=3].  aic = -3.3220, bic = -3.2846
arma: Combination 4 out of 12 total  [nc=1, nd=1].  aic = -2.9441, bic = -2.9191
arma: Combination 5 out of 12 total  [nc=1, nd=2].  aic = -3.2891, bic = -3.2517
arma: Combination 6 out of 12 total  [nc=1, nd=3].  aic = -3.3308, bic = -3.2810
arma: Combination 7 out of 12 total  [nc=2, nd=1].  aic = -3.1488, bic = -3.1114
arma: Combination 8 out of 12 total  [nc=2, nd=2].  aic = -3.2995, bic = -3.2496
arma: Combination 9 out of 12 total  [nc=2, nd=3].  aic = -3.3260, bic = -3.2637
arma: Combination 10 out of 12 total  [nc=3, nd=1].  aic = -3.2934, bic = -3.2435
arma: Combination 11 out of 12 total  [nc=3, nd=2].  aic = -3.3483, bic = -3.2860
arma: Combination 12 out of 12 total  [nc=3, nd=3].  aic = -3.3504, bic = -3.2756
Q: Q=26.03,  df=18,  p=0.099,  pass=True
S: S=15.09,  df=17,  p=0.589,  pass=True

Best BJTF (BIC)  —  AIC = -2.8263,  BIC = -2.7515

Comparison: ARMAX Model

The ARMAX model is an equation-error model:

\[A(q^{-1})\,y(t) = B(q^{-1})\,u(t-k) + C(q^{-1})\,e(t)\]

Both transfer functions share the same denominator A:

\[G = \frac{B}{A}, \qquad H = \frac{C}{A}\]

ARMAX cannot independently model G and H dynamics. When the true G and H have different poles — as is typically the case — the model compensates, and the pole-zero plot often shows approximate cancellations in one transfer function.

Since there are no dedicated preliminary analysis tools for ARMAX, we go directly to selpmod.

armax_spec = {
    'models': [{
        'type':  'armax',
        'na':    [1, 2, 3],
        'nb':    [1, 2, 3, 4],
        'nc':    [0, 1, 2],
        'delay': [3],
        'diff':  [0]
    }]
}
result_armax = selpmod(armax_spec, y, u)
print('\nModel selection complete.')

Input may not be zero mean sequences.
Selecting the best ARMAX prediction model
armax: Combination 1 out of 36 total  [na=1, nb=1, nc=0, delay=3].  aic = -1.9191, bic = -1.8817
Input may not be zero mean sequences.
armax: Combination 2 out of 36 total  [na=1, nb=1, nc=1, delay=3].  aic = -2.4496, bic = -2.3998
Input may not be zero mean sequences.
armax: Combination 3 out of 36 total  [na=1, nb=1, nc=2, delay=3].  aic = -2.6647, bic = -2.6024
Input may not be zero mean sequences.
armax: Combination 4 out of 36 total  [na=1, nb=2, nc=0, delay=3].  aic = -1.9828, bic = -1.9329
Input may not be zero mean sequences.
armax: Combination 5 out of 36 total  [na=1, nb=2, nc=1, delay=3].  aic = -2.4447, bic = -2.3823
Input may not be zero mean sequences.
armax: Combination 6 out of 36 total  [na=1, nb=2, nc=2, delay=3].  aic = -2.6670, bic = -2.5922
Input may not be zero mean sequences.
armax: Combination 7 out of 36 total  [na=1, nb=3, nc=0, delay=3].  aic = -2.2205, bic = -2.1582
Input may not be zero mean sequences.
armax: Combination 8 out of 36 total  [na=1, nb=3, nc=1, delay=3].  aic = -2.5823, bic = -2.5075
Input may not be zero mean sequences.
armax: Combination 9 out of 36 total  [na=1, nb=3, nc=2, delay=3].  aic = -2.7289, bic = -2.6416
Input may not be zero mean sequences.
armax: Combination 10 out of 36 total  [na=1, nb=4, nc=0, delay=3].  aic = -2.3497, bic = -2.2749
Input may not be zero mean sequences.
armax: Combination 11 out of 36 total  [na=1, nb=4, nc=1, delay=3].  aic = -2.6627, bic = -2.5754
Input may not be zero mean sequences.
armax: Combination 12 out of 36 total  [na=1, nb=4, nc=2, delay=3].  aic = -2.7726, bic = -2.6728
Input may not be zero mean sequences.
armax: Combination 13 out of 36 total  [na=2, nb=1, nc=0, delay=3].  aic = -2.7206, bic = -2.6708
Input may not be zero mean sequences.
armax: Combination 14 out of 36 total  [na=2, nb=1, nc=1, delay=3].  aic = -2.7380, bic = -2.6757
Input may not be zero mean sequences.
armax: Combination 15 out of 36 total  [na=2, nb=1, nc=2, delay=3].  aic = -2.7790, bic = -2.7042
Input may not be zero mean sequences.
armax: Combination 16 out of 36 total  [na=2, nb=2, nc=0, delay=3].  aic = -2.7628, bic = -2.7005
Input may not be zero mean sequences.
armax: Combination 17 out of 36 total  [na=2, nb=2, nc=1, delay=3].  aic = -2.7653, bic = -2.6905
Input may not be zero mean sequences.
armax: Combination 18 out of 36 total  [na=2, nb=2, nc=2, delay=3].  aic = -2.7830, bic = -2.6957
Input may not be zero mean sequences.
armax: Combination 19 out of 36 total  [na=2, nb=3, nc=0, delay=3].  aic = -2.7934, bic = -2.7186
Input may not be zero mean sequences.
armax: Combination 20 out of 36 total  [na=2, nb=3, nc=1, delay=3].  aic = -2.8073, bic = -2.7200
Input may not be zero mean sequences.
armax: Combination 21 out of 36 total  [na=2, nb=3, nc=2, delay=3].  aic = -2.8269, bic = -2.7272
Input may not be zero mean sequences.
armax: Combination 22 out of 36 total  [na=2, nb=4, nc=0, delay=3].  aic = -2.7955, bic = -2.7082
Input may not be zero mean sequences.
armax: Combination 23 out of 36 total  [na=2, nb=4, nc=1, delay=3].  aic = -2.8017, bic = -2.7020
Input may not be zero mean sequences.
armax: Combination 24 out of 36 total  [na=2, nb=4, nc=2, delay=3].  aic = -2.8208, bic = -2.7086
Input may not be zero mean sequences.
armax: Combination 25 out of 36 total  [na=3, nb=1, nc=0, delay=3].  aic = -2.7674, bic = -2.7051
Input may not be zero mean sequences.
armax: Combination 26 out of 36 total  [na=3, nb=1, nc=1, delay=3].  aic = -2.8121, bic = -2.7373
Input may not be zero mean sequences.
armax: Combination 27 out of 36 total  [na=3, nb=1, nc=2, delay=3].  aic = -2.8238, bic = -2.7365
Input may not be zero mean sequences.
armax: Combination 28 out of 36 total  [na=3, nb=2, nc=0, delay=3].  aic = -2.7854, bic = -2.7106
Input may not be zero mean sequences.
armax: Combination 29 out of 36 total  [na=3, nb=2, nc=1, delay=3].  aic = -2.8117, bic = -2.7244
Input may not be zero mean sequences.
armax: Combination 30 out of 36 total  [na=3, nb=2, nc=2, delay=3].  aic = -2.8229, bic = -2.7232
Input may not be zero mean sequences.
armax: Combination 31 out of 36 total  [na=3, nb=3, nc=0, delay=3].  aic = -2.8133, bic = -2.7260
Input may not be zero mean sequences.
armax: Combination 32 out of 36 total  [na=3, nb=3, nc=1, delay=3].  aic = -2.8102, bic = -2.7104
Input may not be zero mean sequences.
armax: Combination 33 out of 36 total  [na=3, nb=3, nc=2, delay=3].  aic = -2.8328, bic = -2.7206
Input may not be zero mean sequences.
armax: Combination 34 out of 36 total  [na=3, nb=4, nc=0, delay=3].  aic = -2.8100, bic = -2.7103
Input may not be zero mean sequences.
armax: Combination 35 out of 36 total  [na=3, nb=4, nc=1, delay=3].  aic = -2.8177, bic = -2.7055
Input may not be zero mean sequences.
armax: Combination 36 out of 36 total  [na=3, nb=4, nc=2, delay=3].  aic = -2.8268, bic = -2.7021

Model selection complete.

pmod_armax = result_armax['armax']['aicmod']
stat_armax = result_armax['armax']['aicstat']

print('Best ARMAX model by AIC:')
print(f'  a = {pmod_armax.a}')
print(f'  b = {pmod_armax.b}')
print(f'  c = {pmod_armax.c}')
print(f'  delay = {pmod_armax.delay}')

pmoddisp(pmod_armax, stat_armax)

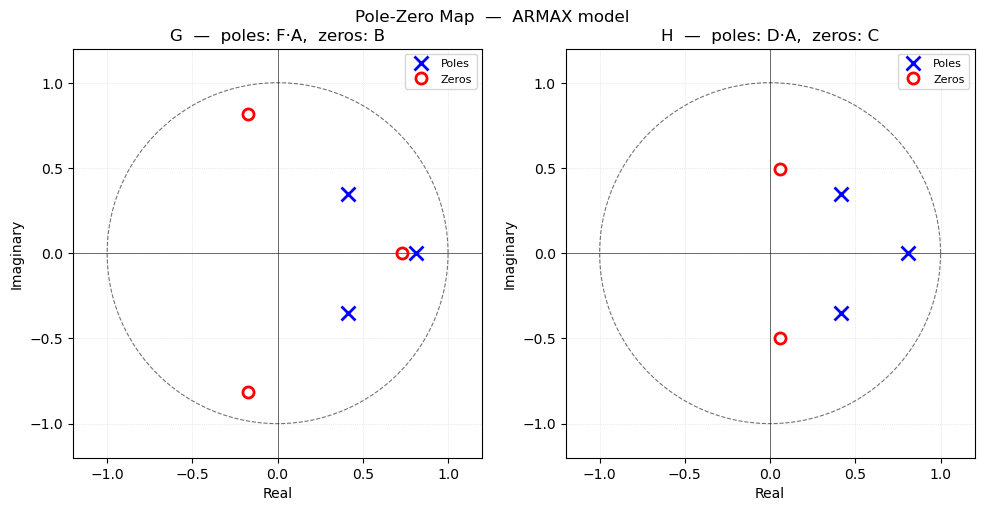

pmodpzplot(pmod_armax)
plt.show()

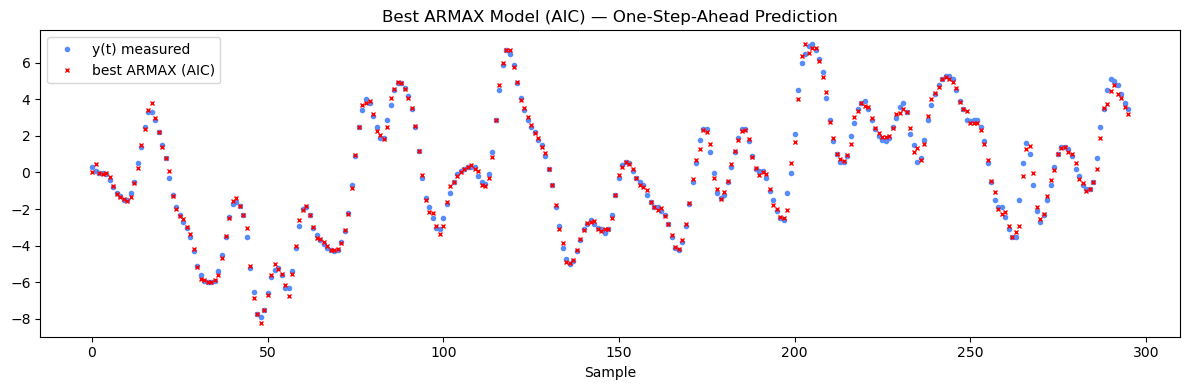

y_pred_armax = pmod_armax.predict(y, u)
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(y,            'C0o', ms=3, label='y(t) measured')
ax.plot(y_pred_armax, 'rx',  ms=3, label='best ARMAX (AIC)')
ax.set_title('Best ARMAX Model (AIC) — One-Step-Ahead Prediction')
ax.set_xlabel('Sample')
ax.legend()
plt.tight_layout()
plt.show()

aic_armax = pmodaic(pmod_armax, y, u)
bic_armax = pmodbic(pmod_armax, y, u)
print(f'\nBest ARMAX (AIC)  —  AIC = {aic_armax:.4f},  BIC = {bic_armax:.4f}')

Best ARMAX model by AIC:
  a = [array([-1.63770408,  0.9640853 , -0.23763   ])]
  b = [array([-0.5337536 ,  0.20677525, -0.23656535,  0.27113907])]
  c = [array([-0.11139344,  0.24976458])]
  delay = [3]

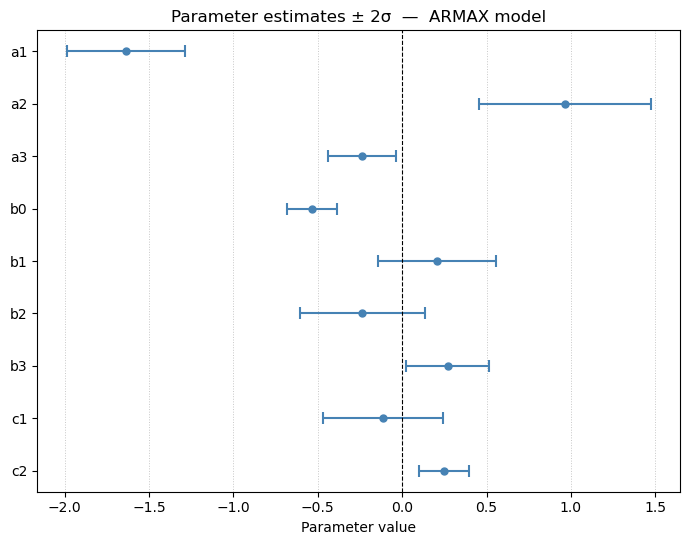

Parameter estimates — ARMAX model
---------------------------------
  Param        Value          ±2σ   95% CI
  ----------------------------------------
  a1      -1.6377       0.3505   (   -1.9882,    -1.2872)
  a2       0.9641       0.5096   (    0.4545,     1.4737)
  a3      -0.2376       0.2004   (   -0.4380,    -0.0373)
  b0      -0.5338       0.1475   (   -0.6813,    -0.3862)
  b1       0.2068       0.3500   (   -0.1433,     0.5568)
  b2      -0.2366       0.3710   (   -0.6075,     0.1344)
  b3       0.2711       0.2457   (    0.0254,     0.5169)
  c1      -0.1114       0.3563   (   -0.4677,     0.2449)
  c2       0.2498       0.1482   (    0.1016,     0.3980)

  Residual std  σ = 0.235320
  Residual var  σ² = 0.055376

Best ARMAX (AIC)  —  AIC = -2.8328,  BIC = -2.7206

There are some parameters with error bars that include 0, but they don’t correspond to the final parameter, so we could not reduce the models from that. Notice that there is an approximate pole/zero cancellation in the G transfer function. Since both G and H have the same denominator in the ARMAX model, we don’t have the flexibility to reduce the orders of B and A, because the root of A is not cancelled in the H transfer function. The approximate cancellation is a diagnostic sign that the shared-pole constraint is forcing the model to absorb noise-model dynamics into the input transfer function. This is a well-known limitation of equation-error models; see Ljung (1999), System Identification: Theory for the User, Ch. 4.

# Noise variance from one-step prediction errors
e_armax = y - pmod_armax.predict(y, u)
var_e_armax = np.var(e_armax)
print(f'Noise variance estimate: {var_e_armax:.6f}')

# Theoretical impulse response (G) and H ACF from the fitted model.
# lagmax covers both the impulse response length and rv positive-lag range.
lagmax_g = len(g_ir)                        # match experimental g_ir length
lagmax_h = rv.squeeze().shape[0] // 2 + 1  # positive lags of rv
lagmax_c = max(lagmax_g, lagmax_h)
acf_theory_H, _, g_ir_theory = partoacf_pmod(pmod_armax, var_e_armax, lagmax_c)

# ── Plot 1: G impulse response ──────────────────────────────────────────────
lags_g = np.arange(lagmax_g)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_g, g_ir, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $\hat{g}(\tau)$ (multiAnal)')
ax.plot(lags_g, g_ir_theory[:lagmax_g], 'r-o', markersize=5, linewidth=1.5,
        label='Theoretical (BJTF fit)')
ax.set_title('G Impulse Response: Experimental vs Theoretical')
ax.set_xlabel(r'Lag $\tau$')
ax.set_ylabel(r'$g(\tau)$')
ax.legend()
plt.tight_layout()
plt.show()

# ── Plot 2: H autocorrelation — rv vs theoretical ───────────────────────────
rv_s   = rv.squeeze()
mid_rv = len(rv_s) // 2
rv_pos = rv_s[mid_rv:mid_rv + lagmax_h]

acf_H_norm = acf_theory_H[:lagmax_h] / acf_theory_H[0]
rv_norm    = rv_pos / rv_pos[0]

lags_h = np.arange(lagmax_h)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_h, rv_norm, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $r_v$ (multiAnal)')
ax.plot(lags_h, acf_H_norm, 'r-o', markersize=4, linewidth=1.5,
        label='Theoretical (H model)')
ax.set_title(r'H Autocorrelation: Experimental $r_v$ vs Theoretical')
ax.set_xlabel('Lag')
ax.set_ylabel('Normalised autocovariance')
ax.legend()
plt.tight_layout()
plt.show()

Noise variance estimate: 0.055349

The impulse response of the G transfer function is accurate, but the ACF of the disturbance is much less accurate than with the BJTF model. The ARMAX model has limited flexibility in representing the H transfer function, since it can only adjust the numerator.

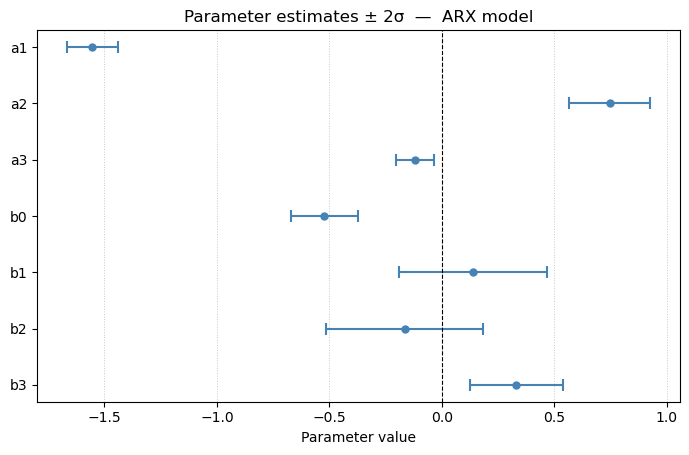

Comparison: ARX Model

The ARX model is the simplest equation-error model — no MA term:

\[A(q^{-1})\,y(t) = B(q^{-1})\,u(t-k) + e(t)\]

The noise transfer function is \(H = 1/A\), so the noise is forced to be a pure AR process. ARX is the cheapest to estimate (linear least squares) but will generally have higher AIC/BIC than BJTF or ARMAX unless the disturbance is genuinely AR.

In PredictMod notation: pmodel('arx', na=[na], nb=[nb], delay=[k]).

arx_spec = {
    'models': [{
        'type':  'arx',
        'na':    [1, 2, 3],
        'nb':    [1, 2, 3],
        'delay': [3]
    }]
}
result_arx = selpmod(arx_spec, y, u)
print('\nModel selection complete.')

Input may not be zero mean sequences.
Selecting the best ARX prediction model
arx: Combination 1 out of 9 total  [na=1, nb=1, delay=3].  aic = -1.9191, bic = -1.8817
Input may not be zero mean sequences.
arx: Combination 2 out of 9 total  [na=1, nb=2, delay=3].  aic = -1.9828, bic = -1.9329
Input may not be zero mean sequences.
arx: Combination 3 out of 9 total  [na=1, nb=3, delay=3].  aic = -2.2205, bic = -2.1582
Input may not be zero mean sequences.
arx: Combination 4 out of 9 total  [na=2, nb=1, delay=3].  aic = -2.7206, bic = -2.6708
Input may not be zero mean sequences.
arx: Combination 5 out of 9 total  [na=2, nb=2, delay=3].  aic = -2.7628, bic = -2.7005
Input may not be zero mean sequences.
arx: Combination 6 out of 9 total  [na=2, nb=3, delay=3].  aic = -2.7934, bic = -2.7186
Input may not be zero mean sequences.
arx: Combination 7 out of 9 total  [na=3, nb=1, delay=3].  aic = -2.7674, bic = -2.7051
Input may not be zero mean sequences.
arx: Combination 8 out of 9 total  [na=3, nb=2, delay=3].  aic = -2.7854, bic = -2.7106
Input may not be zero mean sequences.
arx: Combination 9 out of 9 total  [na=3, nb=3, delay=3].  aic = -2.8133, bic = -2.7260

Model selection complete.

pmod_arx = result_arx['arx']['bicmod']
stat_arx = result_arx['arx']['bicstat']

print('Best ARX model by BIC:')
print(f'  a = {pmod_arx.a}')
print(f'  b = {pmod_arx.b}')
print(f'  delay = {pmod_arx.delay}')

pmoddisp(pmod_arx, stat_arx)
pmodpzplot(pmod_arx)
plt.show()

y_pred_arx = pmod_arx.predict(y, u)
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(y,           'C0o', ms=3, label='y(t) measured')
ax.plot(y_pred_arx,  'rx',  ms=3, label='best ARX (BIC)')
ax.set_title('Best ARX Model (BIC) — One-Step-Ahead Prediction')
ax.set_xlabel('Sample')
ax.legend()
plt.tight_layout()
plt.show()

aic_arx = pmodaic(pmod_arx, y, u)
bic_arx = pmodbic(pmod_arx, y, u)
print(f'\nBest ARX (BIC)  —  AIC = {aic_arx:.4f},  BIC = {bic_arx:.4f}')

Best ARX model by BIC:
  a = [array([-1.55511949,  0.7450646 , -0.12067685])]
  b = [array([-0.52325805,  0.13718028, -0.16599537,  0.33087448])]
  delay = [3]
Parameter estimates — ARX model
-------------------------------
  Param        Value          ±2σ   95% CI
  ----------------------------------------
  a1      -1.5551       0.1130   (   -1.6681,    -1.4421)
  a2       0.7451       0.1812   (    0.5638,     0.9263)
  a3      -0.1207       0.0854   (   -0.2061,    -0.0353)
  b0      -0.5233       0.1492   (   -0.6724,    -0.3741)
  b1       0.1372       0.3291   (   -0.1920,     0.4663)
  b2      -0.1660       0.3475   (   -0.5135,     0.1815)
  b3       0.3309       0.2049   (    0.1260,     0.5357)

  Residual std  σ = 0.239240
  Residual var  σ² = 0.057236

Best ARX (BIC)  —  AIC = -2.8133,  BIC = -2.7260

Now let’s see how closely the theoretical impulse response and disturbance ACF match with the experimental versions for the ARX model.

# Noise variance from one-step prediction errors
e_arx = y - pmod_arx.predict(y, u)
var_e_arx = np.var(e_arx)
print(f'Noise variance estimate: {var_e_arx:.6f}')

# Theoretical impulse response (G) and H ACF from the fitted model.
# lagmax covers both the impulse response length and rv positive-lag range.
lagmax_g = len(g_ir)                        # match experimental g_ir length
lagmax_h = rv.squeeze().shape[0] // 2 + 1  # positive lags of rv
lagmax_c = max(lagmax_g, lagmax_h)
acf_theory_H, _, g_ir_theory = partoacf_pmod(pmod_arx, var_e_arx, lagmax_c)

# ── Plot 1: G impulse response ──────────────────────────────────────────────
lags_g = np.arange(lagmax_g)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_g, g_ir, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $\hat{g}(\tau)$ (multiAnal)')
ax.plot(lags_g, g_ir_theory[:lagmax_g], 'r-o', markersize=5, linewidth=1.5,
        label='Theoretical (BJTF fit)')
ax.set_title('G Impulse Response: Experimental vs Theoretical')
ax.set_xlabel(r'Lag $\tau$')
ax.set_ylabel(r'$g(\tau)$')
ax.legend()
plt.tight_layout()
plt.show()

# ── Plot 2: H autocorrelation — rv vs theoretical ───────────────────────────
rv_s   = rv.squeeze()
mid_rv = len(rv_s) // 2
rv_pos = rv_s[mid_rv:mid_rv + lagmax_h]

acf_H_norm = acf_theory_H[:lagmax_h] / acf_theory_H[0]
rv_norm    = rv_pos / rv_pos[0]

lags_h = np.arange(lagmax_h)
fig, ax = plt.subplots(figsize=(12, 4))
ax.stem(lags_h, rv_norm, linefmt='C0-', markerfmt='C0o', basefmt='k-',
        label=r'Experimental $r_v$ (multiAnal)')
ax.plot(lags_h, acf_H_norm, 'r-o', markersize=4, linewidth=1.5,
        label='Theoretical (H model)')
ax.set_title(r'H Autocorrelation: Experimental $r_v$ vs Theoretical')
ax.set_xlabel('Lag')
ax.set_ylabel('Normalised autocovariance')
ax.legend()
plt.tight_layout()
plt.show()

Noise variance estimate: 0.057205

We can see that the impulse response for G is reasonably accurate, but the ACF of the disturbance is not accurate. This is expected, since the ARX model has no flexibility in setting the H transfer function.

Conclusion

The system identification process for Box-Jenkins Series J (gas furnace) confirmed the BJTF model as the most flexible and interpretable choice for this input-output system.

Summary of the four-step process:

1. Model class: BJTF — separate G (input TF) and H (noise TF) polynomials.

2. Order selection: uniAnal on u → AR(3) for the input; multiAnal → impulse response identified delay \(k = 3\); G GPAC identified \(n_b = 2\), \(n_f = 2\); H GPAC identified \(n_c = 0\), \(n_d = 2\).

3. Estimation: Levenberg-Marquardt converged cleanly; f₂ confidence interval included zero.

4. Validation: Both multiChi tests (Q and S) passed.

5. Automated selection: selpmod with BIC confirmed the model and reduced \(n_f\) to 1.

Model class comparison:

Model	G and H poles shared?	Flexibility	Typical AIC/BIC rank
BJTF	No — estimated independently	Highest	Best
ARMAX	Yes, via A polynomial	Medium	Comparable
ARX	Yes, no MA term	Lowest	Highest

BJTF provides the clearest physical picture: G captures how changes in gas flow rate propagate to CO₂ output after a 3-sample delay, while H independently captures the stochastic disturbance dynamics.

Reference: Box, G. E. P., & Jenkins, G. M. (1976). Time Series Analysis: Forecasting and Control (Rev. ed.), Chapter 11.
